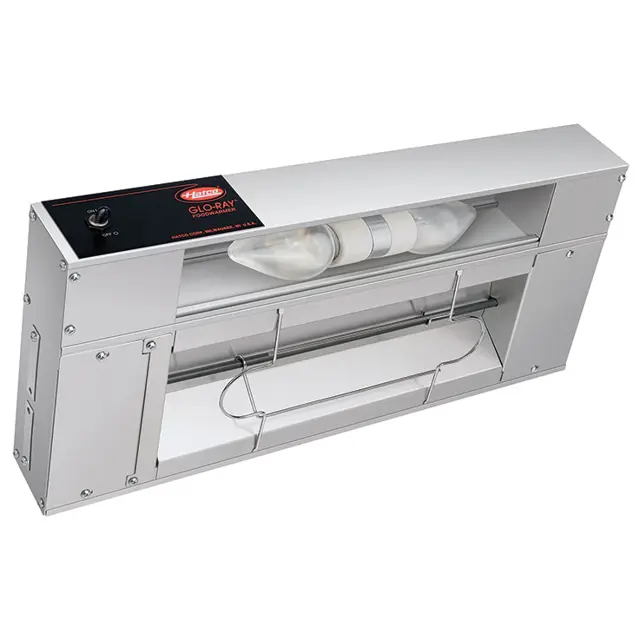

Hatco Infrared Food Warmer GRAHL-60
Create an account to install this asset package.
Maintenance Plans for Hatco Infrared Food Warmer Model GRAHL-60
Integrate maintenance plans directly into your work orders in MaintainX.
1 Daily Warmer Cleaning
NOTICE
Use non-abrasive cleaners only
Cleaning
Wipe surfaces with a clean, soft, damp cloth
Remove stubborn stains with a stainless steel cleaner or non-abrasive cleaner
Clean hard to reach areas with a small brush and mild soap
Display Light Bulb Replacement
Replacing Display Light Bulbs
Safety Precautions
Ensure the power supply is disconnected before starting the replacement.
Wait until the unit has cooled down before proceeding.
Bulb Replacement
Select the appropriate Hatco shatter-resistant bulb for your unit
Unscrew the old bulb from the unit.
Install the new specially coated incandescent bulb.
Post Replacement Check
Parts for Hatco Infrared Food Warmer GRAHL-60
Access the parts list for your equipment in MaintainX.
Additional Mounting Chain
05.03.020.00
Shatter-Ressistant Light Bulb 120, 120/208, 120/240, 100/200 V
02.30.043.00
Shatter-Ressistant Light Bulb 200, 220, 230, 240 V
02.30.058.00
Additional Mounting Chain
05.03.020.00
Shatter-Ressistant Light Bulb 120, 120/208, 120/240, 100/200 V
02.30.043.00
Shatter-Ressistant Light Bulb 200, 220, 230, 240 V
02.30.058.00
Additional Mounting Chain
05.03.020.00
Shatter-Ressistant Light Bulb 120, 120/208, 120/240, 100/200 V
02.30.043.00
Shatter-Ressistant Light Bulb 200, 220, 230, 240 V
02.30.058.00
