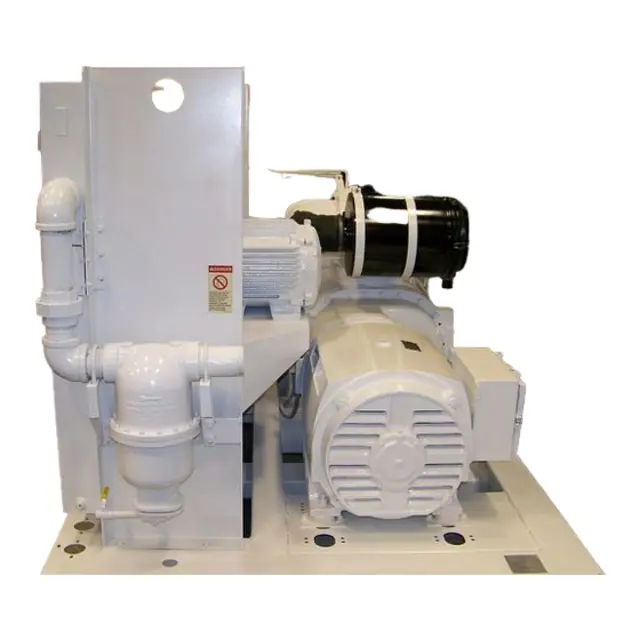

Gardner Denver Compressor EBQ99R

Check for dirt accumulation on oil/aftercooler core faces and the cooling fan

If cleaning is required, clean the exterior fin surfaces of the cores by blowing compressed air carrying a nonflammable safety solvent in a direction opposite that of the cooling fan air flow

Change the oil filter element every 1000 Hour

Change the compressor lubricant every 4000 Hour

Check the relief valve for proper operation every 1 Year

Regrease electric motor after one– or two–shift operation every 18 Month

Regrease electric motor after one– or two–shift operation every 12 Month

Regrease electric motor after continous operation every 9 Month

Regrease electric motor after continous operation every 6 Month

The following readings are based on ambient temperature of 80 F (27 C) for air–cooled oil cooler and 80 F inlet water on water–cooled oil cooler, with the system in good condition

Compressor should be at operating temperature at the time of checks

One–half hour of loaded operation is usually sufficient to reach level–out operating temperatures

Is the compressor at operating temperature?

Enter the time of loaded operation

Has the compressor reached level-out operating temperatures?

Sign off on the compressor oil system check

Warning: Ensure the machine is turned off and cooled down before starting the procedure

Remove the wingnut and pull out the filter element

Visually inspect the element. If cleaning is not necessary, reinstall the filter element

Wash the element by soaking about 15 minutes in warm water with a mild nonsudsing detergent

Enter the water pressure used for rinsing the element

Inspect the element for ruptures or cracks in the pleated media; replace the element if any are found

Inspect the gasket on the bottom (outlet end) of the element; replace the entire element if the gasket is damaged

Allow the element to air dry COMPLETELY. Do not expose the element to heat over 150 F (66 C)

Install the element in the filter body and fasten securely with the wing nut

Check the reservoir oil level - add oil if required

Observe if the unit loads and unloads properly

Check Panel LED's for advisories

Sign off on the 8 Hour Inspection

Inspect the inlet screen and tube for dirt accumulation

Clean the tube when required by ramming a clean dry cloth through the tube

Wipe the inside of the filter body to remove any dirt falling from the inlet tube before reinstalling the element

Sign off on the inlet tube cleaning
