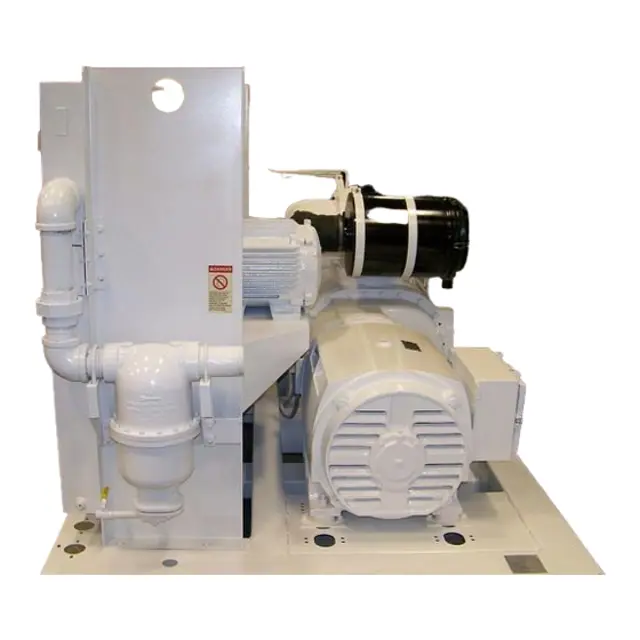

Gardner Denver Compressor EAQ99W

Check for dirt accumulation on oil/aftercooler core faces and the cooling fan

If cleaning is required, clean the exterior fin surfaces of the cores by blowing compressed air carrying a nonflammable safety solvent in a direction opposite that of the cooling fan air flow

Change the oil filter element every 1000 Hour

Change the compressor lubricant every 4000 Hour

Check the relief valve for proper operation every 1 Year

Regrease electric motor after one– or two–shift operation every 18 Month

Regrease electric motor after one– or two–shift operation every 12 Month

Regrease electric motor after continous operation every 9 Month

Regrease electric motor after continous operation every 6 Month

Check the reservoir oil level - add oil if required

Observe if the unit loads and unloads properly

Check Panel LED's for advisories

Sign off on the 8 Hour Inspection

Unit is completely off and no air pressure in the oil reservoir

Power supply to the starter disconnected, tagged and lockout

Screws holding the top plate to the separator housing removed

Top plate lifted from the separator housing

Separator lifted from the separator housing

Separator inspected and/or replaced as necessary, o-ring not damaged, grease applied to the o-ring

Any gasket material adhering to top plate or separator housing removed, new gasket installed

Separator lowered into the housing and centered on the chamfer, pressed down into the housing without using excessive force

Spacer placed on the indent in the separator, top plate seated to the separator, spacer and separator housing, all cap screws installed and tightened

Inspect the inlet screen and tube for dirt accumulation

Clean the tube when required by ramming a clean dry cloth through the tube

Wipe the inside of the filter body to remove any dirt falling from the inlet tube before reinstalling the element

Sign off on the inlet tube cleaning

Number of cleanings performed on the element

Visual inspection: Any rupture, crack or pin hole in the pleated media?

Pressure drop through the filter with a freshly cleaned element

Is the pressure drop below three (3) inches (76 mm) of water with the compressor running at full load?

Sign off on the filter element replacement
