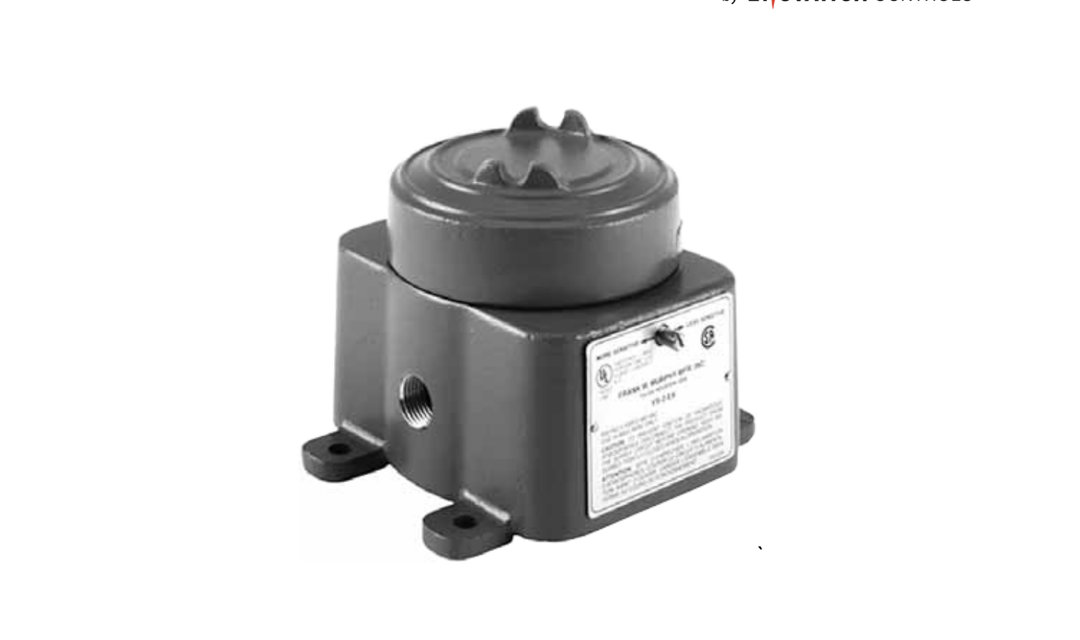

FW Murphy Production Controls Shock/Vibration Control Switch VS94
Create an account to install this asset package.
Maintenance Plans for FW Murphy Production Controls Shock/Vibration Control Switch Model VS94
Integrate maintenance plans directly into your work orders in MaintainX.
Switch Sensitivity Adjustment
Pre-Adjustment Safety Measures
Remove all power before opening the enclosure
Ensure a qualified person performs the adjustments
Do not adjust sensitivity while the machine is running
Stand clear of the machine when it is operating
Sensitivity Adjustment Process
Replace all covers, lids, and electrical enclosures
Press the reset push button to engage the magnetic latch
Did the instrument trip on startup?
Time-Delay Adjustment
Initial Setup
Apply power to the time-delay circuit
Initiate the time-delay function
Timing the Delay
Time the length of the delay with a watch
Let time delay expire
Was a clicking noise heard after the delay expired?
Safety Precautions
Remove all power before opening access door
Parts for FW Murphy Production Controls Shock/Vibration Control Switch VS94
Access the parts list for your equipment in MaintainX.
Dust Boot
25050506
Snap-Switch And Insulator Kit
20000288
Dust Boot
25050506
Snap-Switch And Insulator Kit
20000288
Dust Boot
25050506
Snap-Switch And Insulator Kit
20000288
