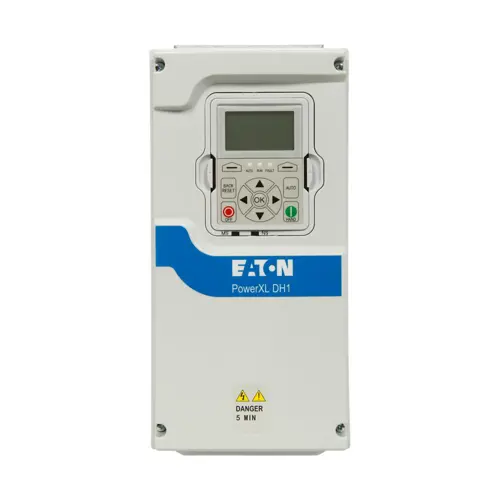

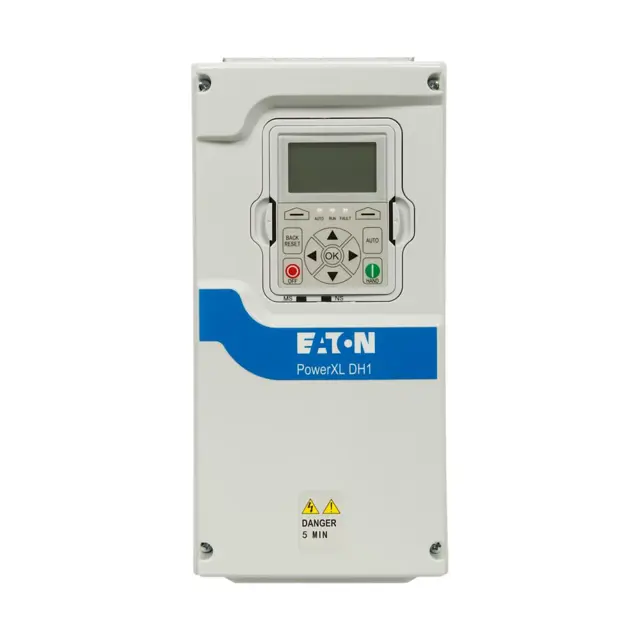

Eaton Variable Frequency Drive DH1-327D8DN-C21C
Create an account to install this asset package.
Maintenance Plans for Eaton Variable Frequency Drive Model DH1-327D8DN-C21C
Integrate maintenance plans directly into your work orders in MaintainX.
6 Monthly Variable Frequency Drive Maintenance
Check the fan function
Filter in the switching cabinet doors (see manufacturer specifications)
Check connection terminals for corrosion
Check all metallic surfaces for corrosion
Variable Frequency Drive Regularly Maintenance
Warning: If the PowerXL frequency inverter is damaged by external influences, contact Technical Service.
Clean cooling vents (cooling slits)
Check the tightening torques of the terminals (control signal terminals, power terminals)
Charging the Internal DC Link Capacitors
After extended storage times or extended downtimes during which no power is supplied (>12 months), the capacitors in the internal DC link must be recharged in a controlled manner in order to prevent damage.
To do this, the PowerXL variable frequency drive must be supplied with power, with a controlled DC power supply unit, via two mains DC bus connection terminals.
Please consult the factory for detailed instructions.
Sign off on the Variable Frequency Drive Regularly Maintenance
