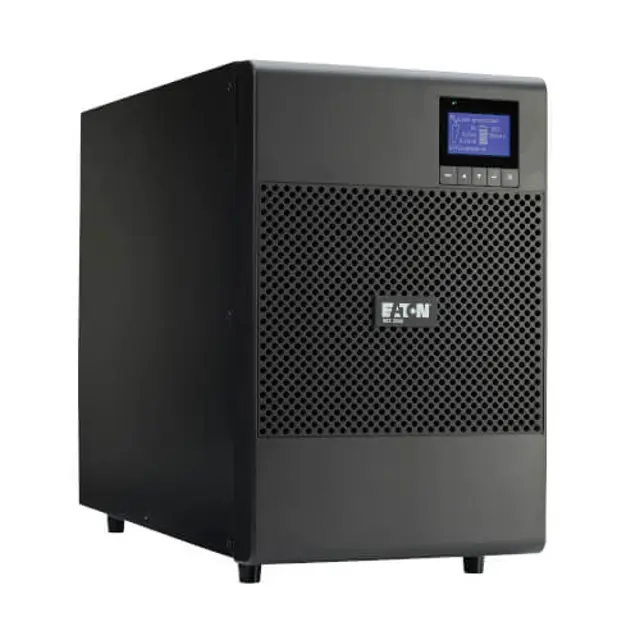

Eaton Uninterruptible Power Supply 9SX2000G

Warning: The EBM is heavy, handling requires a minimum of 2 people.

Unplugged the EBM power cable and battery detection cable from the UPS

Unplugged the EBM power cable and battery detection cable from each EBM if additional EBM(s) are installed

Replaced the EBM(s) and disposed of the used equipment properly

Inserted the EBM cable into the UPS battery connector quickly and firmly

Plugged the EBM cable(s) into the battery connector(s)

Number of EBMs connected to the UPS

Verified that the EBM connections are tight and that adequate bend radius and strain relief exist for each cable

Connected the battery detection cable(s) to the connector of the UPS and of the EBM(s)

DO NOT DISCONNECT the batteries while the UPS is in Battery mode.

Batteries can be replaced easily without turning off the UPS or disconnecting the load.

If you prefer to remove input power to change the batteries, see "UPS Shutdown" on page 27.

Consider all warnings, cautions, and notes before replacing batteries.

- Servicing should be performed by qualified service personnel knowledgeable of batteries and required precautions. Keep unauthorized personnel away from batteries.

- Batteries can present a risk of electrical shock or burn from high short circuit current. Observe the following precautions:

1. Remove watches, rings, or other metal objects.

2. Use tools with insulated handles.

3. Do not lay tools or metal parts on top of batteries.
