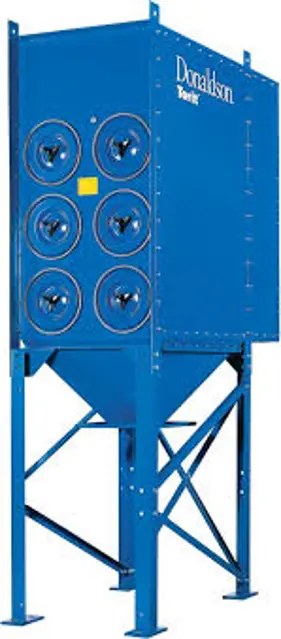

Donaldson Dust Collector DFT 3-36

Need answers fast?
Explore the manual using AI.

Donaldson Dust Collector DFT 3-36
Donaldson Dust Collector DFT 3-36

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Donaldson Dust Collector DFT 3-36

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Donaldson Dust Collector DFT 3-36

Donaldson Dust Collector DFT 3-36

Create an account to install this asset package.

Maintenance Plans for Donaldson Dust Collector Model DFT 3-36

Integrate maintenance plans directly into your work orders in MaintainX.

Filter Maintenance

Check mark

Filter Installation and Replacement

Check mark

CAUTION!

Check mark

Use proper safety and protective equipment when removing contaminants and filters.

Check mark

Dirty filters may be heavier than they appear.

Check mark

Use care when removing filters to avoid personal injury.

Check mark

Do not drop filters.

Check mark

Filter Removal:

Check mark

1. Turn power to unit OFF

Check mark

2. Start at the top access port

Run this procedureArrow right

Dust Disposal

Check mark

Turn unit OFF

Check mark

Empty dust container

Check mark

Empty 55-gallon drum if 2/3 full

Check mark

Close gate before servicing drum if optional slide gate is used

Check mark

Reinstall drum

Check mark

Open gate after reinstalling drum

Run this procedureArrow right

Compressed Air Components Inspection

Check mark

Caution! The compressed-air supply must be oil and moisture free. Contamination in the compressed air used to clean filters will result in poor cleaning, cleaning valve failure, or poor collector performance. Purge compressed-air lines to remove debris before connecting to the unit’s compressed-air manifold. Turn compressed-air supply OFF and bleed lines before performing service or maintenance work.

Check mark

Check the compressed air components

Check mark

Replace compressed-air filters if necessary

Check mark

Drain moisture following the manufacturer’s instructions

Check mark

Check the cleaning valves, solenoid valves, and tubing for leaks with the compressed-air supply ON

Check mark

Replace the cleaning valves, solenoid valves, and tubing if necessary

Check mark

Sign off on the compressed air components inspection

Run this procedureArrow right

Dust Collector Check

Check mark

Monitor overall performance of the collector

Check mark

Monitor exhaust

Check mark

Monitor pressure drop across filters

Check mark

Monitor dust disposal

Check mark

Sign off on the dust collector check

Run this procedureArrow right

Parts for Donaldson Dust Collector DFT 3-36

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Front Inlet Cover Assembly

AD3261101

Yoke

3122701

Filter Cartridge, Blue Ultra-Web®

P190817-461-436

Filter Cartridge, Blue Flame Retardant (FR) Ultra-Web

P190818-461-436

Filter Cartridge, Ultra-Web with Hot Melt

P190906-461-436

Front Inlet Cover Assembly

AD3261101

Yoke

3122701

Filter Cartridge, Blue Ultra-Web®

P190817-461-436

Filter Cartridge, Blue Flame Retardant (FR) Ultra-Web

P190818-461-436

Filter Cartridge, Ultra-Web with Hot Melt

P190906-461-436

Front Inlet Cover Assembly

AD3261101

Yoke

3122701

Filter Cartridge, Blue Ultra-Web®

P190817-461-436

Filter Cartridge, Blue Flame Retardant (FR) Ultra-Web

P190818-461-436

Filter Cartridge, Ultra-Web with Hot Melt

P190906-461-436
