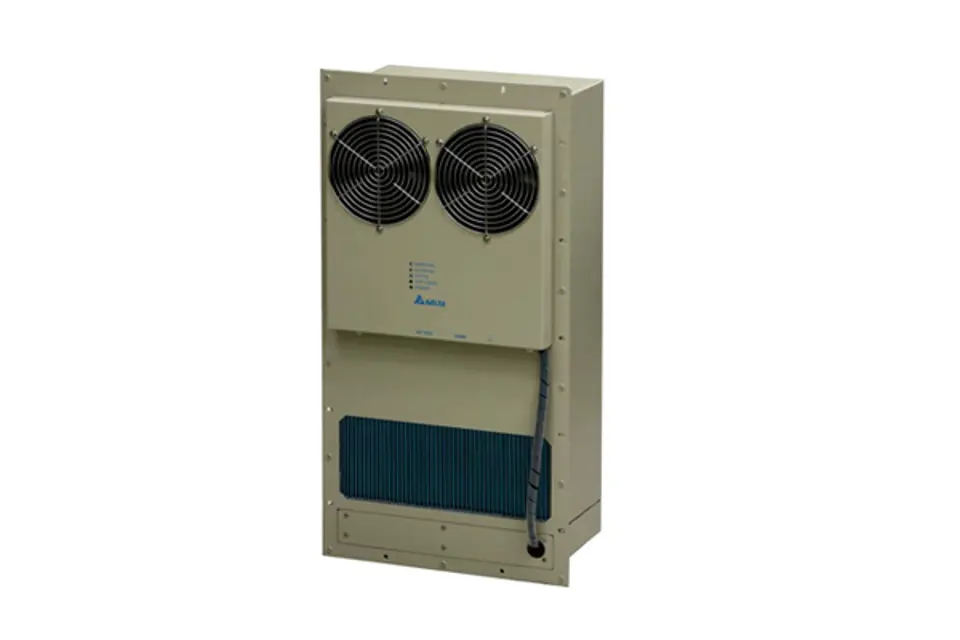

Delta Electronics Heat Exchanger HEX100PC
Create an account to install this asset package.
Maintenance Plans for Delta Electronics Heat Exchanger Model HEX100PC
Integrate maintenance plans directly into your work orders in MaintainX.
Monthly Maintenance
Use brush and low pressure air to remove dust or any debris on both internal/external air inlet and air outlet opening.;
Quarterly Maintenance
Follow below maintenance sequence; Internal loop maintenance :
* The maintenance is from the internal side .
* Use screw driver to remove screw on upper portion of chassis assy (Item 1) .
* Disassemble the internal plate assy (Item 7) and disconnect fan from controller (Item 3) . Note the connection location .
* Use brush and low pressure air to remove dust on internal plate assy (Item 7) , internal fan (item 4) and heat exchange core opening .
* Hold internal plate assy (Item 7) and connect fan to controller (Item 3) .
* Re-attach internal plate assy (Item 7) and use screw driver to secure screw with chassis assy (Item 1) .
External loop maintenance :
* The maintenance is from the external side .
Parts for Delta Electronics Heat Exchanger HEX100PC
Access the parts list for your equipment in MaintainX.
Heat exchange CORE
-
Internal fan
-
Internal plate assy
-
External fan
-
Fan guard
-
Heat exchange CORE
-
Internal fan
-
Internal plate assy
-
External fan
-
Fan guard
-
Heat exchange CORE
-
Internal fan
-
Internal plate assy
-
External fan
-
Fan guard
-
