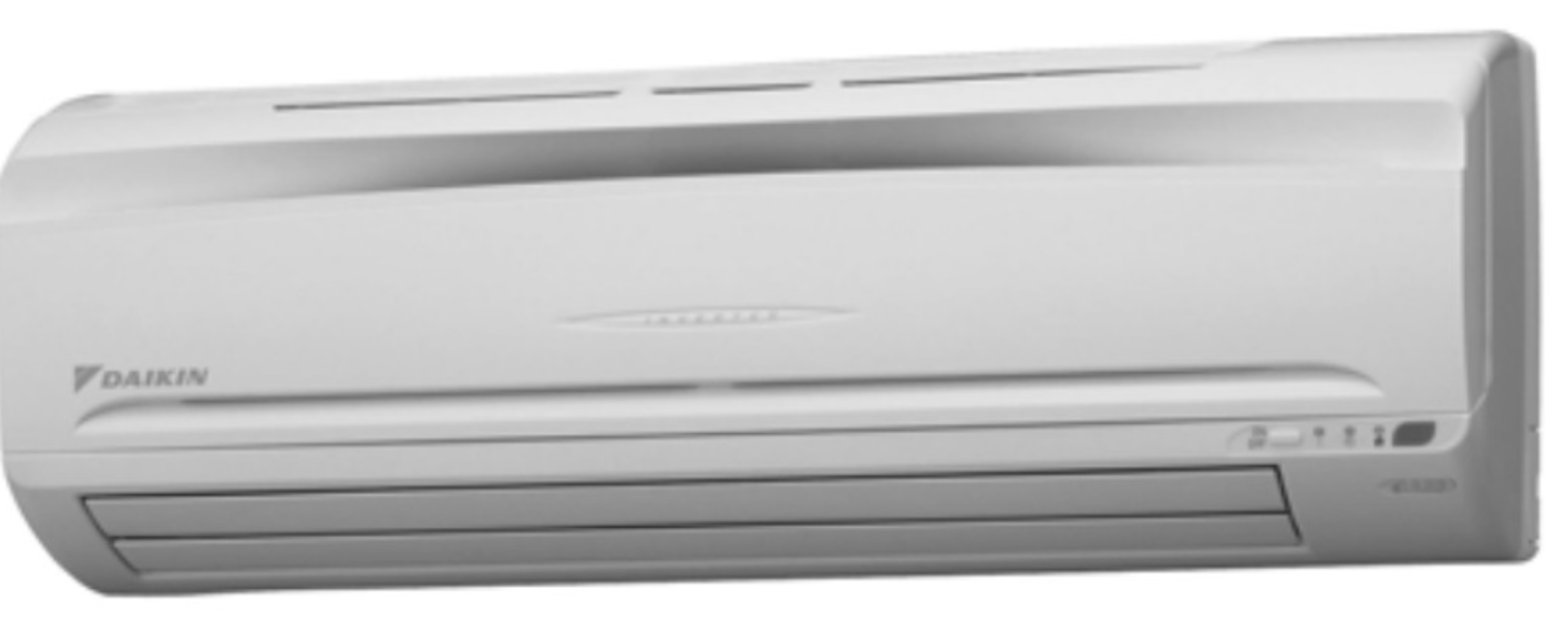

Daikin Indoor Unit Wall Mounted Type FTXS35CAVMB

Warning: Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.

Remove the outer panels and plates.

1 Loosen the 3 screws on the right of the right side panel.

2 Loosen the 2 screws on the back.

3 Remove the packing. There is a hook on the back.

4 Pull up the right side panel.

5 Loosen the 2 screws of the wiring fixture.

Warning: Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.

Take care not to cut your finger by the fins of the heat exchanger.

Loosen the 4 screws (2 on both sides) of the top panel.

Loosen the 6 screws of the front panel.

Loosen the 2 screws (each 1 in front and back) of the clamp plate.

Slide the clamp plate to the left to undo the hooks and remove the plate.

Undo the upper 2 hooks to remove the front panel. Align the position of hole of the upper hook to pull the front panel out.

Lift the front panel up to remove the left side hooks and open the panel.

Check No.10: Power Supply Waveforms Check

Measure the power supply waveform between pins 1 and 3 on the terminal board

Check to see if the power supply waveform is a sine wave (Fig.1)

Check to see if there is waveform disturbance near the zero cross (sections circled in Fig.2)

Sign off on the power supply waveforms check

Warning: Never touch any live parts for at least 10 minutes after turning off the circuit breaker.

If unavoidably necessary to touch a live part, make sure there is no DC voltage using the tester.

Check the continuity with the tester.

Reverse the pins and make sure there is continuity.

Sign off on the capacitor check

Warning: Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.

Warning: Ventilate when refrigerant leaks during the work. (If refrigerant contacts fire, it will cause to arise toxic gas.)

Caution: Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas welding rod.

Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to recover the refrigerant gas with the recovery system.

Refrigerant gas recovered with the recovery system

Sign off on the distributor removal
