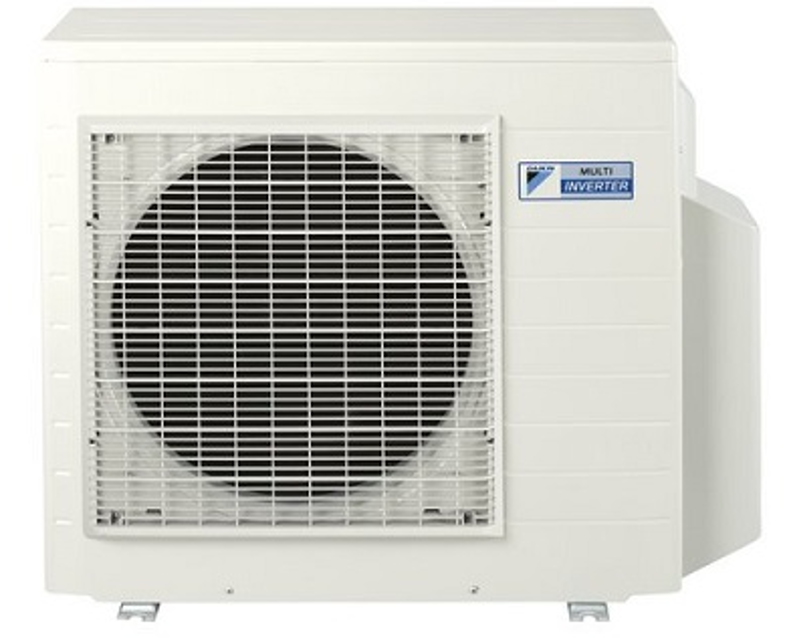

Daikin 3-Zone Outdoor Heat Pump 3MKS58KVM

Create an account to install this asset package.

Maintenance Plans for Daikin 3-Zone Outdoor Heat Pump Model 3MKS58KVM

Integrate maintenance plans directly into your work orders in MaintainX.

PCB Removal

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1. Remove the service monitor PCB.

1 External appearance

2 Remove the screw of the terminal board and open it.

3 Disconnect the connectors [S52] [S102] from the service monitor PCB.

4 Unfasten the upper hook and pull the service monitor PCB upward to remove.

2. Remove the main PCB.

[AC1] [AC2] : for power supply [S10] : for transmission

1 Disconnect the connectors for the terminal board on the right side.

Run this procedure

Electrical Box Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Disconnect the harnesses

Layout of the connecting wires

Detach the fixing tape of the electrical box cover

Unfasten the 4 hooks at the mark of the electrical box cover

Lift the electrical box cover up and remove it

Detach the clamp and disconnect the connector for the fan motor [S70]

Release the fan motor lead wire from the hooks

Disconnect the connectors for the electronic expansion valve coils

Run this procedure

Outer Panel Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Take care not to cut your finger by the fins of the heat exchanger.

Appearance features checked

Remove the 4 screws (2 on both sides) of the top panel.

Remove the 6 screws of the front panel.

Remove the screw of the shield plate.

Slide the shield plate to the left to unfasten the hooks and remove the shield plate.

Unfasten the upper 2 hooks. Align the position of hole of the upper hook to pull the front panel out.

Lift the front panel up to unfasten the left side hooks. The front panel has 3 hooks on the left.

Unfasten the right side hook and remove the front panel.

Run this procedure

Outdoor Fan / Fan Motor Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Preparation: Remove the outer panels and plates. Remove the electrical box.

Remove the 2 screws of the fan motor fixing plate.

Remove the fan motor fixing plate. When reassembling, fit the lower hooks. Nut size: M6

Remove the nut and remove the outdoor fan. When reassembling, align the mark of the outdoor fan with the D-cut section of the motor shaft.

Open the 2 hooks and release the fan motor lead wire. When reassembling, put the fan motor lead wire through the back of the fan motor so as not to be entangled with the outdoor fan.

Remove the 4 screws and remove the fan motor.

Sign off on the fan motor removal

Run this procedure

Coil / Thermistor Removal

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1. Remove the electronic expansion valve coils.

1 Pull out the electronic expansion valve coils.

2. Remove the four way valve coil.

1 Remove the screw to remove the four way valve coil.

3. Remove the thermistors.

When reassembling, meet the edge of the thermistor and the fixture.

1 Open the putty and remove the liquid pipe thermistors.
