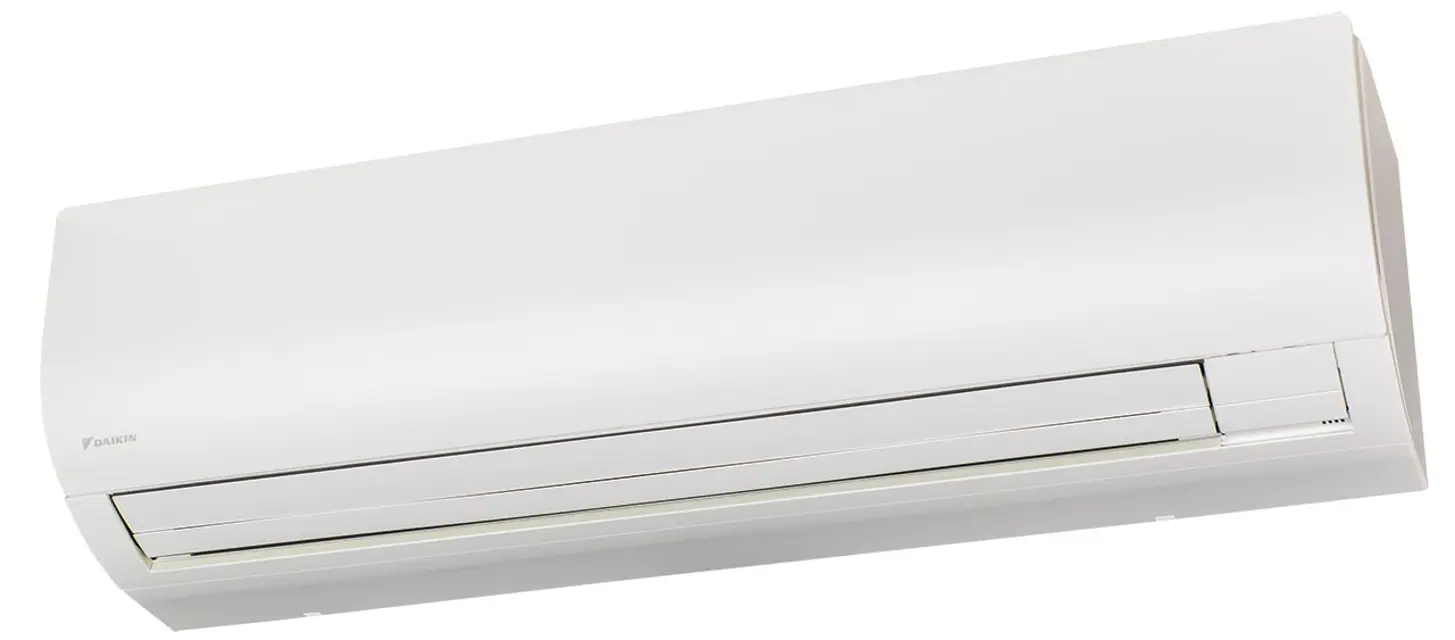

Daikin Air Conditioner FXAQ25MAVE

Create an account to install this asset package.

Maintenance Plans for Daikin Air Conditioner Model FXAQ25MAVE

Integrate maintenance plans directly into your work orders in MaintainX.

Air Filter Cleaning

WARNING! Only a qualified person is allowed to perform maintenance without daily maintenance. Before touching any of connection wirings, be sure to turn off all power supply switches. For installation of optional parts, only a qualified person is allowed to do so. Be sure to use optional parts specified by our company. Installation in your own manner may result in water leakage, electric shock or fire.

CAUTION! Be sure to stop operation and turn the power switch off before cleaning the air conditioner. Otherwise, an electric shock or injury may result. Do not wash the air conditioner with water. Doing so may result in an electric shock. Use a stable stool. Use extra cautions when cleaning the air conditioner.

NOTE: Do not remove the air filter except when cleaning. This may cause breakage.

Clean the air filter when the display shows (TIME TO CLEAN AIR FILTER).

Open the front panel. Place your fingers on the panel protrusions on the left and right sides of the main unit and open until the panel stops.

Pull out the air filter. Push up the tab in the center of the air filter slightly, then pull out in a downward direction.

Clean the air filter.

NOTE: When the air filter is very dirty, use a soft brush and neutral detergent. Remove water and dry in the shade. Do not wash it with hot water of more than 50°C, as doing so may result in discoloration and/or deformation. Do not expose it to fire, as doing so may result in burning.

Attach the air filter. Once cleaning is done, be sure to replace the air filter as it was.

Run this procedure

Air Conditioner Air Outlet and Exterior Cleaning

HOW TO CLEAN THE AIR OUTLET AND EXTERIOR

• Clean with soft cloth.

• When it is difficult to remove stains, use water or neutral detergent.

NOTES

• Do not use gasoline, benzene, thinner, polishing powder, or liquid insecticide. It may cause discoloring or warping.

• Do not use water or air of 50°C or higher for cleaning air filters.

HOW TO CLEAN THE FRONT PANEL

You can remove the front panel to clean it.

NOTES
