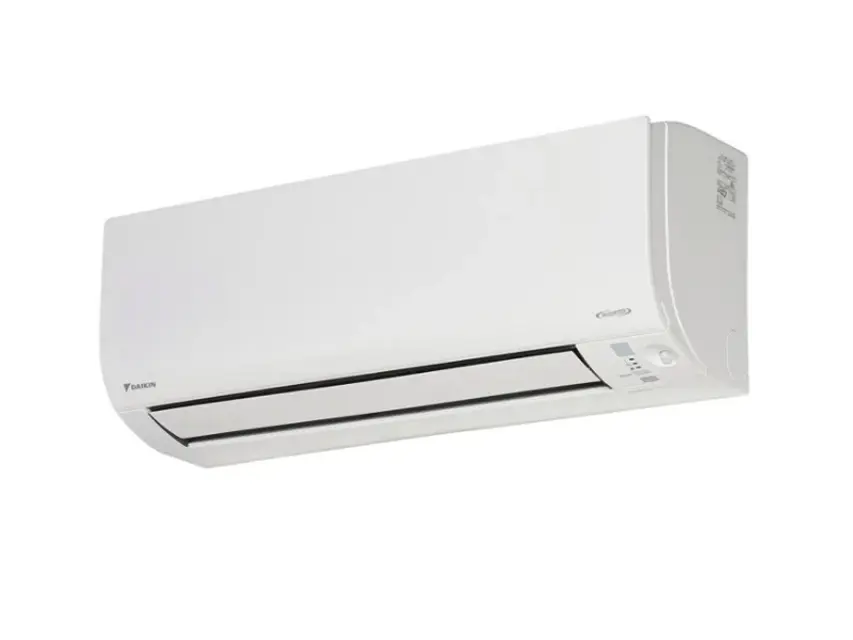

Daikin Air Conditioner FTXF35WVMA

Create an account to install this asset package.

Maintenance Plans for Daikin Air Conditioner Model FTXF35WVMA

Integrate maintenance plans directly into your work orders in MaintainX.

Air Conditioner Units Cleaning

CAUTION: Before cleaning, be sure to stop the operation and turn off the circuit breaker

Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

Is the Indoor unit clean?

Is the Outdoor unit clean?

Is the Remote controller clean?

For cleaning, do not use the materials as follows: Hot water above 40°C, Benzine, gasoline, thinner, other volatile oils, Polishing compound, Scrubbing brushes, other hard stuff

Prior to a long period of non-use:

Select the mode

Did you start the operation?

Run this procedure

6 Monthly Air Conditioner Air-Purifying Filter Maintenance

Warning: The method of cleaning and replacement of the filters may differ depending on the model. Refer to the label attached to the separately sold filters themselves

Open the front panel and pull out the air filters

Insert titanium apatite deodorizing filter securely under the tabs

Open the front panel and pull out the air filters

Take off titanium apatite deodorizing filter

Hold the recessed parts of the frame and unhook the 4 claws

Remove the filters from the tabs

Clean or replace the filters

Vacuum dust, and soak in lukewarm water or water for about 10 to 15 minutes if very dirty

Run this procedure

Air Conditioner Front Panel Cleaning

CAUTION: Before cleaning, be sure to stop the operation and turn off the circuit breaker

CAUTION: Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

Is the front panel dirty?

Select the cleaning material used

Do not use: Water hotter than 40°C, Volatile liquid such as benzene, petrol and thinner, Polishing compounds, Rough materials such as a scrubbing brush

Sign off on the cleaning procedure

Run this procedure

2 Weekly Air Conditioner Air Filter Cleaning

Clean Air Conditioner Air Filter

Vacuum dust or wash the filter

Open the front panel

Pull out the air filters

Wash the air filters with water or clean them with vacuum cleaner

If the dust does not come off easily

Wash the air filters with neutral detergent thinned with lukewarm water, then dry them up in the shade

Reattach the filters

Close the front panel slowly

Run this procedure

1 Yearly Air Conditioner Batteries Replacement

Warning: To avoid possible injury or damage from battery leakage or rupturing, remove the batteries when not using the product for long periods of time

The standard replacement time is 1 year. Both batteries should be replaced at the same time. Be sure to replace them with new size AAA.LR03 (alkaline) batteries

Has the LCD begun blinking as an alert that the batteries need replacing?

In some cases, when battery consumption is accelerated owing usage conditions, signal reception may decline before the LCD begins blinking

The batteries supplied with the remote controller are for initial operation. The batteries may run out in less than 1 year

Have the batteries been replaced?

Sign off on the battery replacement

Run this procedure
