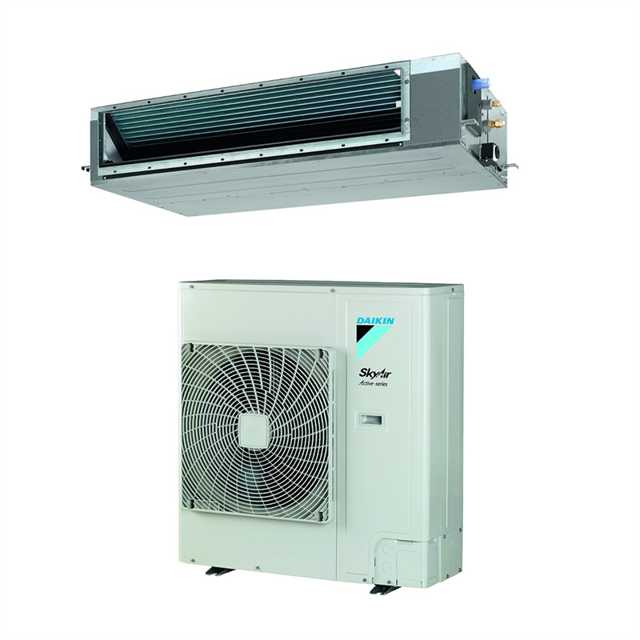

Daikin Air Conditioner FBA100A2VEB / AZAS100MY1

WARNING: Do NOT let the indoor unit get wet. Possible consequence: Electric shock or fire

NOTICE: Do NOT use gasoline, benzene, thinner polishing powder or liquid insecticide. Possible consequence: Discoloration and deformation

NOTICE: Do NOT use water or air of 50°C or higher. Possible consequence: Discoloration and deformation

NOTICE: Do NOT scrub firmly when washing the blade with water. Possible consequence: The surface sealing peels off

Clean the drain pan so that it does NOT become clogged and dusty

Clean the air outlet and outside panels with a soft cloth. If it is difficult to remove stains, use water or neutral detergent

Remove the air filters by pulling their cloth upward (in case of rear suction) or backward (in case of bottom suction)

Clean the air filter. Use a vacuum cleaner or wash with water. If the air filter is very dirty, use a soft brush and neutral detergent

- Maintain before a long stop period

1. Let the indoor units run in fan only operation for about half a day in order to dry the interior of the units

2. Turn off the power. The user interface display disappears. When the main power is turned on, the air conditioner will use some power, even if it is not operating

3. Clean air filters and casings of indoor units. Contact your installer or maintenance person to clean air filters and casings of the indoor unit. Maintenance tips and procedures for cleaning are provided in the installation/operation manuals of dedicated indoor units. Make sure to install cleaned air filters back in the same position

- Maintain after a long stop period

E.g., at the beginning of the season

1. Check and remove everything that might be blocking inlet and outlet vents of indoor units and outdoor units

2. Check if the earth is connected properly

- Prevent direct sunlight from entering a room during cooling operation by using curtains or blinds

- Ventilate often. Extended use requires special attention to ventilation

- Keep doors and windows closed. If the doors and windows remain open, air will flow out of your room causing a decrease in the cooling or heating effect

- Be careful NOT to cool or heat too much. To save energy, keep the temperature setting at a moderate level

- NEVER place objects near the air inlet or the air outlet of the unit

Doing so may cause a reduced heating/cooling effect or stop operation

- Turn off the main power supply switch to the unit when the unit is NOT used for longer periods of time. If the main power supply switch is on, the unit consumes electricity. Before restarting the unit, turn on the main power supply switch 6 hours before operation to ensure smooth running

- When the display shows (time to clean the air filter), clean the filters

- Condensation may form if the humidity is above 80% or if the drain outlet gets blocked. - Adjust the room temperature properly for a comfortable environment. Avoid excessive heating or cooling. Notice that it may take some time for the room temperature to reach the set temperature. Consider using the timer setting options
