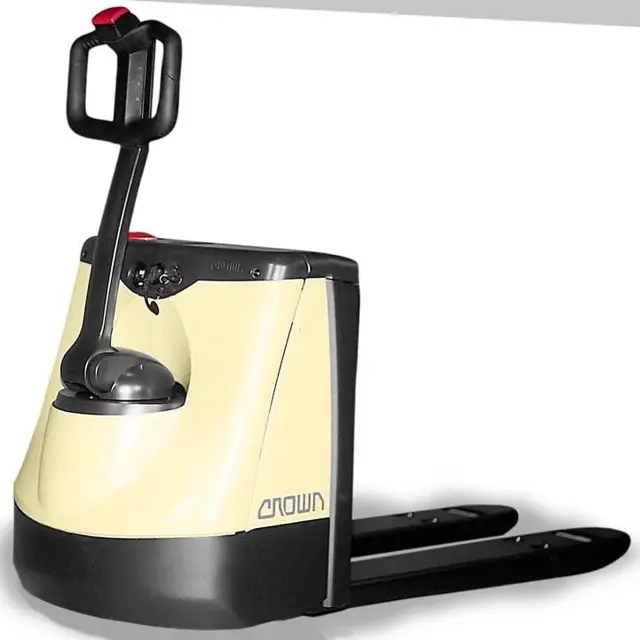

Crown Walkie Pallet Truck WP 2040-45

CHECK YOUR TRUCK BEFORE STARTING WORK

Water level in serviceable batteries is checked

Battery cables and connectors are not damaged or corroded

All wheels are in good condition

Both forks are straight and not cracked or badly worn

Load backrest is in place and secure

Test your truck in an uncongested area

Operate the truck slowly in both directions

Operate through the full speed range in both forward and reverse

Check braking distance in forward and reverse

If the braking distance is too long to stop safely, don't use the truck

Does everything look, work and feel right?

DANGER! TRUCK BATTERIES CAN BE DANGEROUS: Your truck battery produces a gas that can explode. It also contains acid that could burn or disfigure you. Do not try to install, remove, charge or service a truck battery unless you are trained and authorized. Never smoke or use an open flame around batteries. Your company should provide an area where it is safe to work on batteries. Use that area for all battery work. Use protective equipment such as gloves, eye shields, aprons, etc.

Turn the truck OFF and disconnect the battery

Make certain you use the correct size and weight battery

Never operate a truck that has an underweight or undersized battery installed

Never let anything metal touch the top of the cells. You could cause sparks or do damage to the battery. Use an insulator (such as plywood) when necessary

Use an approved spreader bar to place a battery in, or remove it from, the battery compartment. Make sure you adjust the spreader bar hooks to fit the battery

Connect the new battery. Turn the truck ON and check truck operation

Sign off on the battery maintenance

Using a separate external charger?

Using a charger built into the truck?

Use an extension cord less than 25 ft. long with a wire size of 16 AWG or heavier
