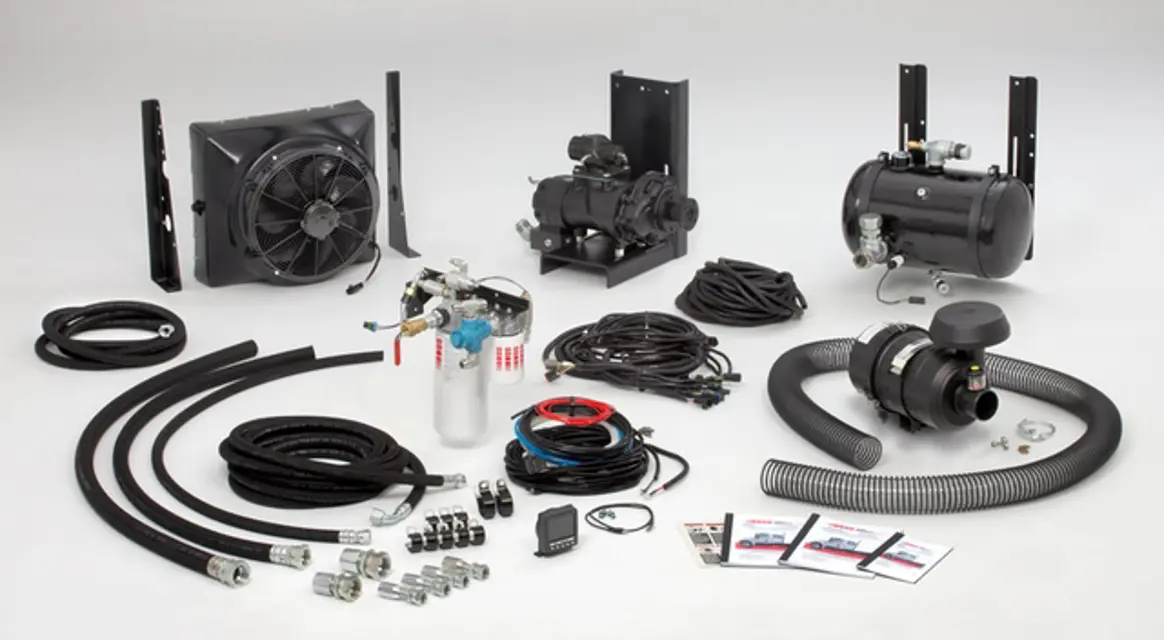

Boss PTO Air Compressor 8060 UBI

2. Clean the exterior of the cooler core.;

1. Observe gauge readings. Note any change from normal readings and determine the cause. Have necessary repairs made. (NOTE: Readings are considered normal when they fall in the green area of the gauge.);

1. Check compressor shaft seal for leakage.

2. Check air filter piping, fittings, and clamps.

3. Check compressor mounting hardware.

4. Change the compressor air filter. (Shorter interval may be necessary under dusty conditions.)

5. Verify sump tank safety relief valve is functional.

6. Change compressor oil and oil filter.;

Because the life of the Air Filter is dependent on the operating environment, the B-CAN requires the operator to visually inspect the air filter service indicator. After every 25 hours of compressor operation, the B-CAN will prompt you to check the air filter indicator. If you are unable to locate the air filter indicator, consult your service personnel for instructions on performing this check. The procedure for checking the air filter is listed below:

1. Locate the air filter and check the indicator to see if the yellow indicator section has reached the red SERVICE area.

2. If it has reached the red SERVICE area, notify your service personnel for filter replacement.

3. After checking the indicator, select the YES button on the B-CAN to hide the notification for another 25 hours.

4. Since the air filter element will have a service life that is heavily based on the environment, the B-CAN notification is simply a reminder to check the filter indicator. For this reason, the decision to replace the air filter element should be based on the filter indicator, not on the B-CAN notification.;
