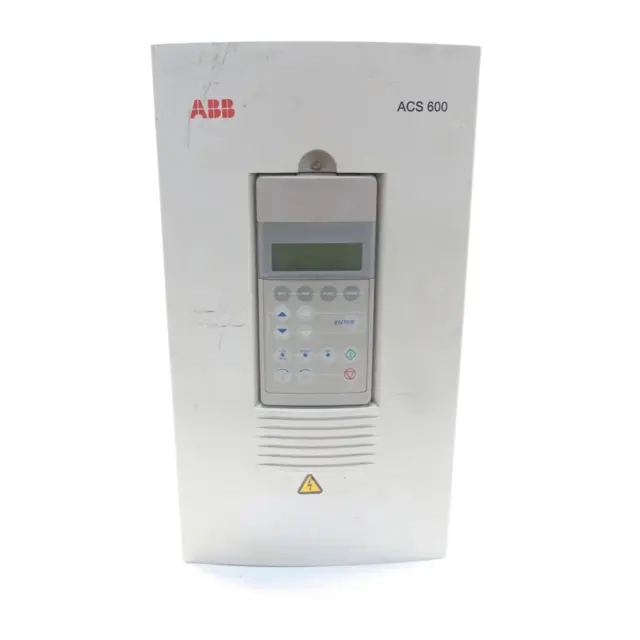

ABB Frequency Converter ACP 601-0070-5

Warning: The heatsink should be checked and cleaned annually to prevent overtemperature warnings and faults.

If cleaning is carried out in the same room where the unit is normally operated, use a soft brush.

Dust removed gently with a soft brush?

If the installation can be taken apart and the cleaning is carried out in another room (or outdoors), use compressed air.

Compressed air used for cleaning?

Prevent fan rotation when using compressed air for heatsink cleaning to prevent bearing wear.

Fan rotation prevented during cleaning?

Sign off on the heatsink cleaning

Warning: Only trained personnel should perform this procedure

Enter the current usage hours of the ACx 601 unit

Is there increasing noise from fan bearings?

Is there a gradual rise in the heatsink temperature?

Is the frequency converter operated in a critical part of a process?

If the above checks indicate a need for fan replacement, proceed with the following steps

Turn off and unplug the ACx 601 unit

Remove the bottom of the frame to access the fan

Replace the fan with an ABB specified spare part

Warning: Only use ABB specified spare parts for replacement

Current hours on the capacitors

If capacitor failure is suspected, contact ABB for replacements

Upload a photo of the suspected faulty capacitor

Sign off on the capacitor check

Reforming: Reform (re-age) spare part capacitors once a year according to ACS 600 Capacitor Reforming Guide (code: 64059629).
