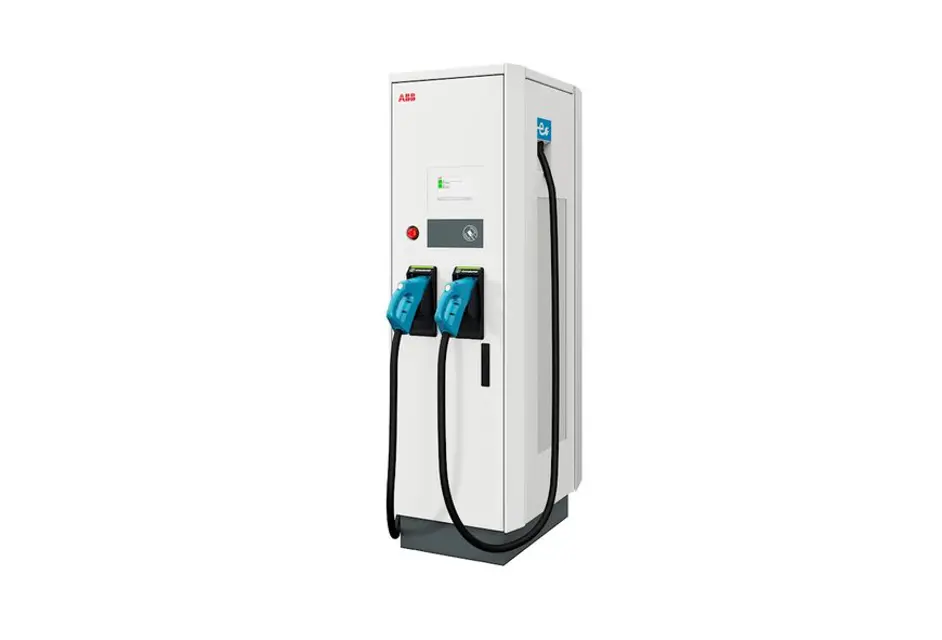

ABB Fast Charging Station Terra 184

ABB Fast Charging Station Terra 184

Create an account to install this asset package.

Maintenance Plans for ABB Fast Charging Station Model Terra 184

Integrate maintenance plans directly into your work orders in MaintainX.

1 Yearly Air Inlet Filter Replacement

Check mark

De-energize the EVSE

Check mark

Open the left and right doors

Check mark

Loosen the nuts using the spanner

Check mark

Remove these parts

Check mark

CAUTION: Prevent contamination of other parts of the EVSE. Make sure that contamination on the filter does not come off

Check mark

Install the new air inlet filter. Make sure that the air flow direction that is indicated on the air inlet filter corresponds with the air flow

Check mark

Install these parts

Check mark

Tighten the nuts

Check mark

Repeat steps 3 to 7 for the other air inlet filters

Run this procedureArrow right

Initial 1 Year AIr Outlet Filter Replacement

Check mark

De-energize the EVSE

Check mark

Open the right door

Check mark

Loosen the nuts using the spanner

Check mark

Pull the cover to the front

Check mark

Carefully pull and remove the outlet filter

Check mark

CAUTION: Prevent contamination of other parts of the EVSE. Make sure that contamination on the filter does not come off

Check mark

Install the new air outlet filter. Ensure that the air flow direction that is indicated on the air outlet filter corresponds with the air flow

Check mark

Push the cover to the rear

Check mark

Tighten the nuts

Run this procedureArrow right

3 Monthly Maintenace

Check mark

– Do a check for damage on the EV charge cables and the connectors.

Check mark

– Do a check for damage on the cabinet.

Check mark

1. Do a check for damage on these parts: EV charge cables and connectors:

Check mark

- Cracks or ruptures

Check mark

- Internal wires of the cable are visible

Check mark

Touchscreen:

Check mark

- Cracks

Check mark

- Touch screen does not work

Check mark

Coating of the cabinet; - Cracks or ruptures

Run this procedureArrow right

2 Yearly AIr Outlet Filter Replacement

Check mark

De-energize the EVSE

Check mark

Open the right door

Check mark

Loosen the nuts using the spanner

Check mark

Pull the cover to the front

Check mark

Carefully pull and remove the outlet filter

Check mark

CAUTION: Prevent contamination of other parts of the EVSE. Make sure that contamination on the filter does not come off

Check mark

Install the new air outlet filter. Ensure that the air flow direction that is indicated on the air outlet filter corresponds with the air flow

Check mark

Push the cover to the rear

Check mark

Tighten the nuts

Run this procedureArrow right

4 Monthly Cleaning

Check mark

Danger: Hazardous voltage. Do not apply high-pressure water jets. Water can leak into the cabinet.

Check mark

NOTE: When the EVSE is put in a corrosion sensitive environment, superficial rust is possible on welding points. This rust is only visual. There is no risk for the integrity of the cabinet. The procedure below removes the rust.

Check mark

Rinse with low-pressure tap water to remove rough dirt.

Check mark

Apply a a solution of cleaning agent to the cabinet and let it soak.

Check mark

Manually remove dirt. Use the non-abrasive tool.

Check mark

CAUTION: Do not use abrasive tools.

Check mark

Rinse with low-pressure tap water.

Check mark

If necessary, apply wax on the front for extra protection and gloss.

Check mark

If there was rust and you want it not to appear again, apply a rust-preventive primer.

Run this procedureArrow right

Parts for ABB Fast Charging Station Terra 184

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Air Inlet Filter

XUF.N0001.0

Air Outlet Filter

XUF.N0002.0

Cooling Fan

ZFV.V2N00.0

Power Module

YPA.00267

DC Fuse

ZEG.00132

Air Inlet Filter

XUF.N0001.0

Air Outlet Filter

XUF.N0002.0

Cooling Fan

ZFV.V2N00.0

Power Module

YPA.00267

DC Fuse

ZEG.00132

Air Inlet Filter

XUF.N0001.0

Air Outlet Filter

XUF.N0002.0

Cooling Fan

ZFV.V2N00.0

Power Module

YPA.00267

DC Fuse

ZEG.00132
