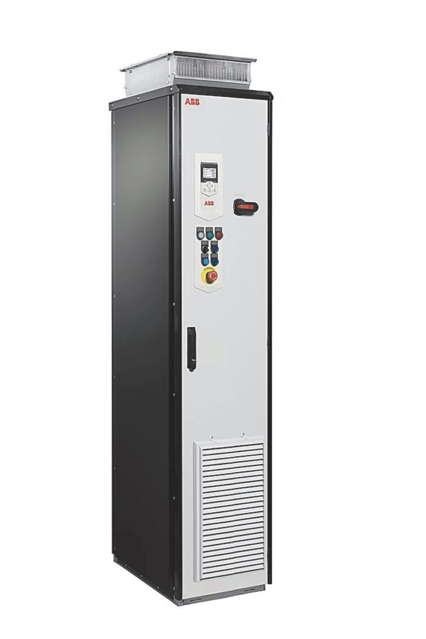

ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0293A-3
Need answers fast?
Explore the manual using AI.
The ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0293A-3 is designed for optimal motor control and energy efficiency in industrial applications. This advanced drive offers flexible integration and robust performance, making it ideal for various automation needs. Enhance your operations with ABB's reliable technology.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0293A-3
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0293A-3
Create an account to install this asset package.
Maintenance Plans for ABB Enclosed Variable Speed/Frequency Drive Model ACS880-07-0293A-3
Integrate maintenance plans directly into your work orders in MaintainX.
ZCU-14 Memory Unit Replacement
Warning: Do not remove or insert the memory unit when the control unit is powered.
Warning: Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed?
Clip of the memory unit pulled forward?
Memory unit taken off?
Memory unit replaced in reverse order?
Sign off on the memory unit replacement
9 Yearly Auxiliary Cooling Main Fan Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Power supply wires unplugged from the control unit terminal X208:FAN2
Fan lifted up
New fan installed in reverse order with arrow pointing up
Counter reset in group 5 in the primary control program
Sign off on the fan replacement
6 Yearly ZCU-12 Control Unit Battery Replacement
Warning: For trained personnel only
Drive stopped and electrical safety precautions followed
Upload a photo of the battery ejector in the battery slot
Battery carefully pulled out of the battery holder
Upload a photo of the new CR2032 battery
New CR2032 battery carefully put into the battery holder
Sign off on the battery replacement
9 Yearly Cabinet “door" Fan Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Mounting plate above the fan removed
Four mounting screws of the fan mounting plate loosened
Mounting plate lifted upwards
Power supply wires unplugged
Fan mounting plate lifted off
Fan removed from the mounting plate
New fan installed in reverse order
6 Yearly IP54 (UL type 12) Roof Fan 60 Hz Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Front grating lifted upwards and removed
Fastening screws of the front plate loosened and plate removed
Fan supply wires disconnected
Mounting screws of the fan loosened
Fan pulled out
New fan installed in reverse order
Sign off on the fan replacement
Parts for ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0293A-3
Access the parts list for your equipment in MaintainX.
Sine Filter
B84143V0390S229
Fuse IEC
170M5810D
Sine Filter
B84143V0390S229
Fuse IEC
170M5810D
Sine Filter
B84143V0390S229
Fuse IEC
170M5810D
