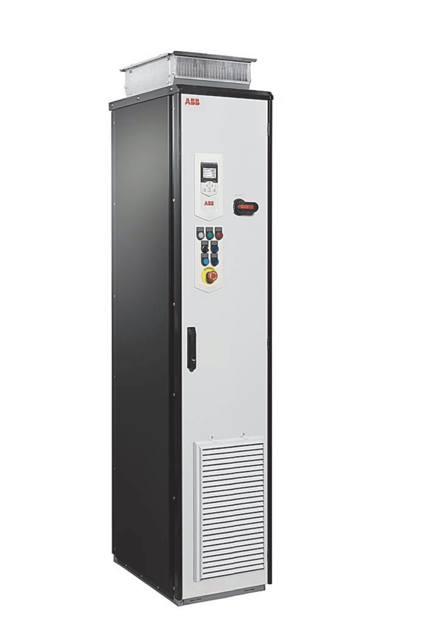

The ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0145A-3 is designed for efficient motor control in industrial applications. This versatile drive enhances energy savings and operational performance, making it ideal for various automation needs. With robust features and reliable performance, the ACS880 series is a top choice for modern industrial environments.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0145A-3

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0145A-3

Create an account to install this asset package.

Maintenance Plans for ABB Enclosed Variable Speed/Frequency Drive Model ACS880-07-0145A-3

Integrate maintenance plans directly into your work orders in MaintainX.

6 Yearly ZCU-12 Control Unit Battery Replacement

Warning: For trained personnel only

Drive stopped and electrical safety precautions followed

Battery ejector moved into the battery slot on the battery

Old battery carefully pulled out of the battery holder

New CR2032 battery carefully put into the battery holder

Sign off on the battery replacement

Run this procedure

1 Yearly Door Filter IP54 Replacement

Check the dustiness of the air inlet meshes

If the dust cannot be removed by vacuum cleaning from outside through the grating holes with a small nozzle, proceed as follows:

Stop the drive and do the steps in section Electrical safety precautions before you start the work.

Remove the fasteners at the top of the grating.

Lift the grating and pull it away from the door.

Remove the air filter mat.

Place the new filter mat in the grating the metal wire side facing the door.

Reinstall the grating in reverse order.

Sign off on the filter replacement

Run this procedure

ZCU-14 Memory Unit Replacement

Warning: Do not remove or insert the memory unit when the control unit is powered.

Warning: Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Drive stopped and electrical safety precautions followed?

Clip of the memory unit pulled forward?

Memory unit taken off?

Memory unit replaced in reverse order?

Sign off on the memory unit replacement

Run this procedure

6 Yearly IP54 (UL type 12) Roof Fan 60 Hz Replacement

WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Drive stopped and electrical safety precautions followed

Front grating lifted upwards and removed

Fastening screws of the front plate loosened and plate removed

Fan supply wires disconnected

Mounting screws of the fan loosened

Fan pulled out

New fan installed in reverse order

Sign off on the fan replacement

Run this procedure

Cleaning the Exterior of the Drive

Drive stopped and electrical safety precautions followed

Select cleaning tools used
