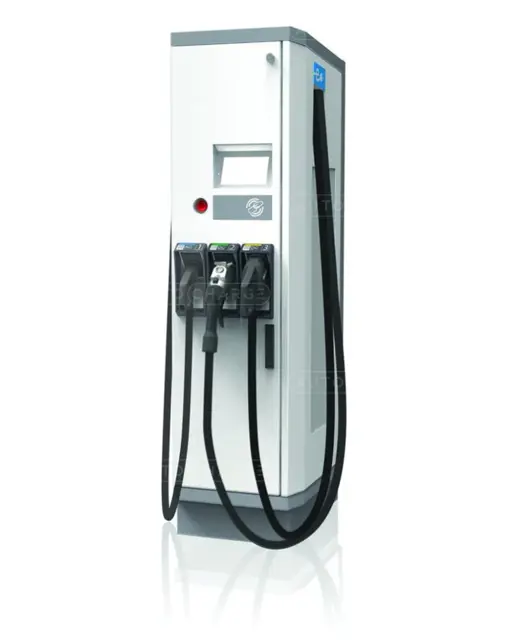

ABB Charger T53

Warning: Test only when the charger is in idle mode and ready to charge

Press the emergency button. Did the screen immediately indicate the emergency button is pressed?

Reset the emergency button by turning the knob clockwise. Did the charger return to its idle state after a few moments?

Sign off on the emergency stop inspection

- Internal RCDs and RCBO’s need to be tested on correct functioning on a regular basis.

During the yearly maintenance round that is advised to be executed by a certified ABB technician, this will be checked.

→ Check for cracks or ruptures on the connector or cable, check if no internal wires of the cable are visible.

→ Look for damage, cracks or ruptures;

- Do not apply high-pressure water jets. Water may leak into the Charge Station.

- Only use cleaning agents with a pH value between 6 and 8.

- Do not use cleaning agents with abrasive components.

The Charger cabinet is made from powder coated high quality stainless steel. The coating must be kept in good condition.

Clean the Charger three times a year in the following way:

- Remove rough dirt by rinsing with low-pressure tap water.
