Braun Open Pocket Washer Annual PM

Routine maintenance maximizes operating efficiency and minimizes downtime. The maintenance procedures described below will prolong the life of the machine and help prevent accidents.
24P DC Columbus - Cintas
03/05/2024

Braun Open Pocket Washer Annual PM

Routine maintenance maximizes operating efficiency and minimizes downtime. The maintenance procedures described below will prolong the life of the machine and help prevent accidents.

    *** LOTO Confirmation Statement - DO NOT EDIT/REMOVE ***

    All hazardous energy has been isolated using LOTO procedures?

    All potential stored or residual energy has been relieved, disconnected, restrained, lowered, and/or otherwise rendered safe?

    Lock Out Tag Out

    LOTO Performed

    Utilize the Cintas ENERGY CONTROL PROGRAM Checklist when applying LOTO.

    Check Brake Linings - If applicaple, check brake linings. Replace if needed. Appendix 1

    • 1.PNG
    • Pass
    • Flag
    • Fail

    Check Electrical Connections - Check All electrical connections in the Main Control Panel and on the Inverter

    • Pass
    • Flag
    • Fail

    Replace shock absorbers - Replace all shock absorbers and date each one

    • Pass
    • Flag
    • Fail

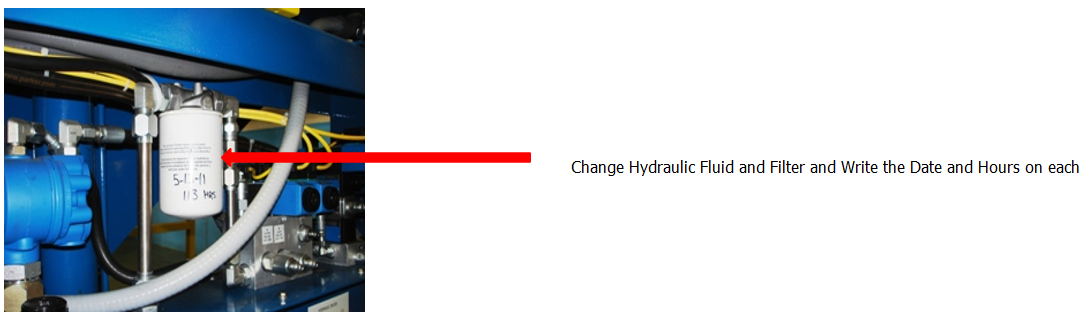

    Change fluid & filter - Change hydraulic fluid; install new filter. See Appendix 2.

    • 2.PNG
    • Pass
    • Flag
    • Fail

    Test motor - Test electric motor insulation for breakdown. Replace friction tape if damaged. Perform an amp draw.

    • Pass
    • Flag
    • Fail

    Chute - Replace the quick exhaust air filter. Braun part number#P02300003. See Appendix 3.

    • 3.PNG
    • Pass
    • Flag
    • Fail

    Cleanup - Clean up all tools, parts, and debris from the work area.

    • Pass
    • Flag
    • Fail

    Note Repairs Made or Needed. Generate Corrective Work Order for Needed Repairs.
