6175M 500 Hour Maintenance Service

Filter List

• AL169573 (AL232896) - Hydraulic Filter

• RE539279 - Engine oil filter

• DZ115391 - Primary fuel filter

• DZ115392 - secondary fuel filter

• AL221066 Transmission oil filter

• 15W-40 6.2 gallons

• AL215053 - Engine primary air filter

• AL215054 - Engine secondary air filter

Check engine drive belt

Check axle housing oil level

• oil must be level with check plug bore

• if necessary top axle off with hy-gard

• Torque level plug to 66 ft-lbs

Check hub oil level

• Turn the wheel until OIL LEVEL mark is horizontal

• Remove level plug. Oil must be level with plug bore

• If necessary top off hub with hy-gard

• torque level plug to 66 ft-lbs

• Repeat procedure for opposite side

Change engine oil filter

• Remove engine oil filter

• Clean mounting surface

• If necessary, replace the dust seal on filter mounting surface. Ensure that the lugs on the dust seal engage in the recesses in the mounting surface of the element

• Apply a thin film of oil to the sealing rings of filter

• Hand tighten engine oil filter

Change engine oil

• Remove drain screw (A)

• Drain engine oil into suitable container

• Re-install oil drain screw and tighten to 37 ft-lbs, use a new sealing washer

• Fill crankcase with 15W-40 (6.2 gallons)

• Check oil level on dipstick

• Run engine and check for oil leaks at filter base and drain plug

• Shut off engine and allow oil to settle for a few minutes

• Check oil level again and top off as necessary

Replace engine air filters

• R&R inner and outer engine air filters

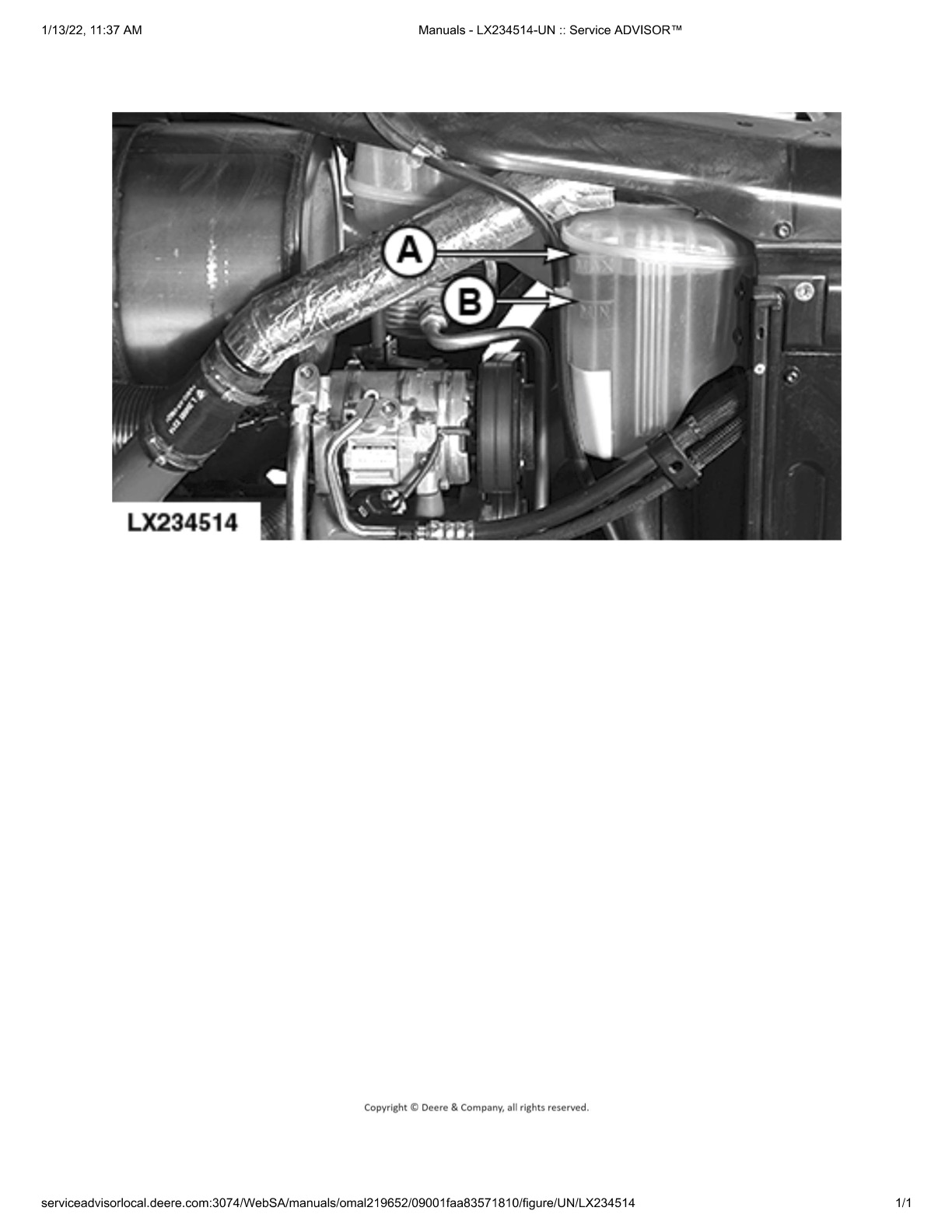

Check coolant level and condition

• Remove coolant reservoir cap

• Test coolant condition and freeze point and record in box below

• Top off coolant as necessary

Coolant freeze point

Replace transmission filter

• Unscrew filter

• Coat seals with oil

• Run engine for a few minutes

• Shut off engine and allow oil to settle for 10-15 minutes, then check oil level and top off if necessary

Replace hydraulic oil filter

• Unscrew filter

• Coat seals with oil

• Run engine for a few minutes

• Shut off engine and allow oil to settle for 10-15 minutes, then check oil level and top off if necessary

Engine Hour reading

Meter name
